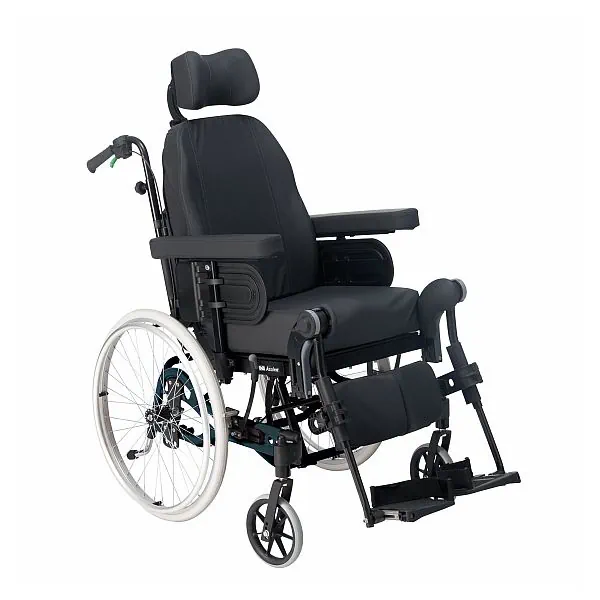

The Rea Azalea is the first choice for tilt in space wheelchairs, designed to manage all aspects of postural support and comfort. The seating system is versatile with its wide choice of options and adjustments, with possibilities of both transit or self-propel rear wheels. It has been developed into a family of models suitable to meet the requirements of every individual, making the Rea Azalea the market leader in tilt in space wheelchairs, tried and trusted the world over.

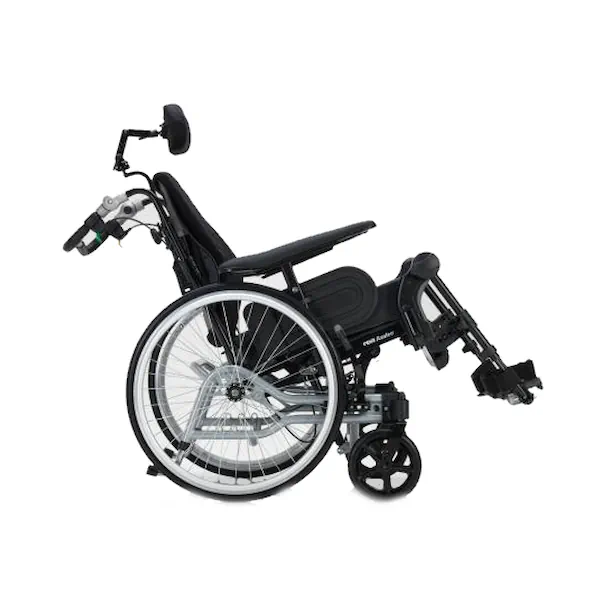

The Invacare Rea Azalea wheelchair is designed to accommodate a range of positioning requirements. Both tilt and recline are easily adjusted by attendant gas pistons for light and effortless positioning. An optional electric controlled version offers independent control of posture and comfort. Adjustments are abundant on the Rea Azalea, with every aspect of the wheelchair and seating system adaptable for the perfect level of support and postural management.
Stability is a strong feature of the Rea Azalea delivering exceptional safety and confidence for the client with our unique DSS (Dual Stability System) built into every wheelchair. When tilting and reclining, the seating system moves forward and down inside the frame. This weight shifting guarantees exceptional stability is maintained, even when in full tilt and recline. Additionally, the pivot points of the Rea Azalea match the natural pivot points of the person for synchronised movement between the body and wheelchair, reducing the risk of sheer and pressure.
Key features
| Seat width: | 390-440 / 440-490 / 490-540 (390-490 / 440-540 / 490-590 mm) |
| Seat depth: | 430 – 500 mm |
| Seat angle: | -1° to 23° (+1° to 25° Std) |
| Seat height: | 400 / 450 mm |
| Backrest angle: | 0° – 30° |
| Backrest height: | Backrest plate: 560-790 mm / Tension adjustable backrest: 540-715 mm |
| Length of footrests: | 330-500 mm |
| Armrest height: | 240-360 mm |
| Driving unit width: | SW + 220 mm (SW + 230 mm) |
| Total length inc. footrests: | 950-1020 mm |
| Total height: | 900-1250 mm |
| Max. safe slope: | 7° |
| Max. User weight: | Max 135 kg |
| Total weight: | 34 kg (SW 440 mm) |
| Transport weight: | 16.5 kg |
| Crash tested: | Yes |
| Frame colour: | Pearl Grey, Azurite Blue, Sand, Happy Red, Electric Green |
| Colour (other): | Multi stretch PU black fabric TR26, Black Plush TR35, Black Spacer TR36 |
![]() |
Rea Azalea User Manual (11.27 MB) |
