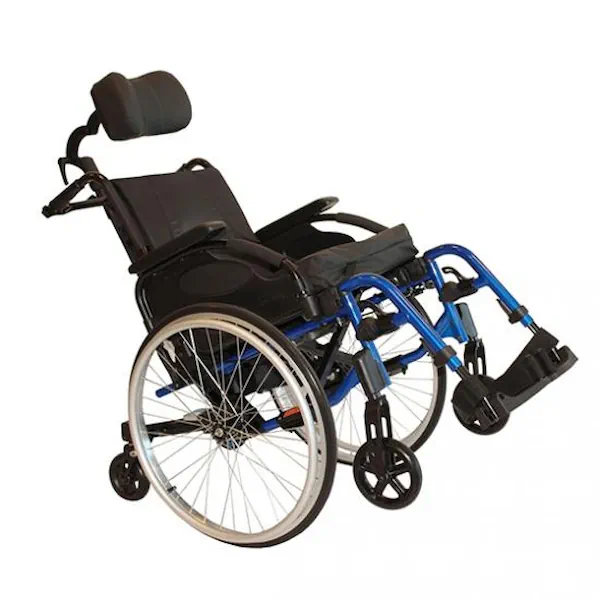

The Action 3NG MWP is a 6 wheeled manual wheelchair, designed from the successful Action 3 NG.
Sharing an extensive range of cross-compatible options and accessories with the renowned Action range, this highly configurable foldable chair can be set-up to meet many individual needs. By moving the rearwheels forward, it provides easier access to the handrims, and enhances manoeuvrability.
This outstanding design offers a unique resting position: thanks to the wheels added at the back. The chair can easily be tilted and is able to achieve 25° of seat tilt.
| Seat width: | 430 / 455 / 490 / 505 mm |
| Seat depth: | 400 / 450 mm |
| Seat angle: | 3° |
| Seat height: | 460 / 485 mm |
| Backrest angle: | 0° / 7° / 0° – 30° / – 15° – +15° |
| Backrest height: | 350 – 510 mm |
| Front frame angle: | 80° / 0° – 75° |
| Length of footrests: | 200 – 400 / 330 – 460 / 440 – 510 mm |
| Armrest height: | 230 mm / 170 – 295 mm |
| Driving unit width: | Seat width + 190 mm |
| Total width folded: | 295 mm |
| Total height folded: | 895 – 1485 mm |
| Total height: | 810 – 1040 mm |
| Max. safe slope: | 4° |
| Turning diameter: | 800 mm |
| Max. user weight: | 125 kg |
| Total weight: | 17.6 kg |
| Transport weight: | 11.2 kg |
| Crash tested: | Yes |
| Frame colour: | Slate grey, Matt Black, Blue Pop, Matt Red |
| Colour (other): | Black nylon |
 |
The Invacare Action 3NG MWP User Manual (2.46 MB) |
