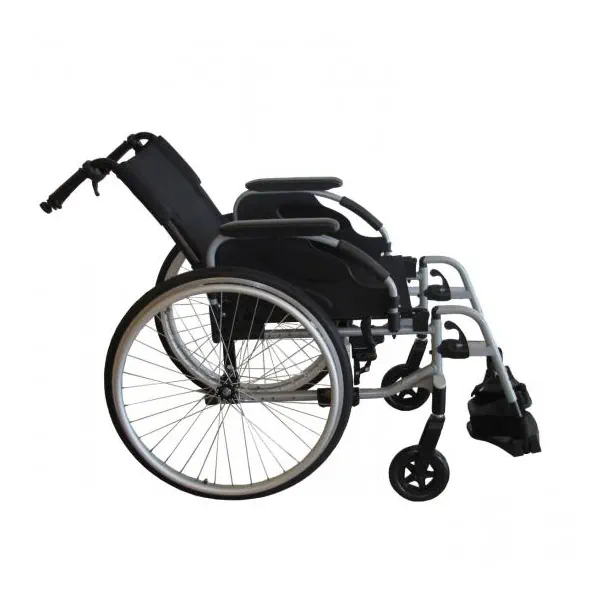

The Action 2NG specifications meet the needs of clients refusing to compromise on safety or comfort. The next generation Action 2NG offers a low total weight for easy folding, handling and transportation, combined with good driving abilities
It’s easy handling makes this wheelchair ideal for basic needs with quality components for effortless driving performance both in doors and out. With a weight of 14.9 kilos, the Invacare Action 2NG provides a functional and practical day to day chair with adjustable armrests and footrests for optimum comfort.
It features a folding frame making it easy to handle when transporting or storage. The tried and trusted Action brand provides a reliable wheelchair with cross compatibility of parts across the Action family.
| Seat width: | 380 / 405 / 430 / 455 / 480 mm |
| Seat depth: | 400 / 430 mm |
| Seat angle: | 3° |
| Seat height: | Self propel 460 / 485 / 510 mm / Transit 485 / 510 mm |
| Backrest angle: | 7° / 0° – 30° |
| Backrest height: | 430 mm |
| Front frame angle: | 80° / 0° – 80° |
| Length of footrests: | 330 / 460 mm |
| Armrest height: | 200 – 280 mm (n°1) / 240 mm (n°2) |
| Driving unit width: | Self propel Seat width + 200 mm / Transit Seat width + 145 mm |
| Total width folded: | Self propel 325 mm / Transit 240 mm |
| Total height folded: | 935 mm |
| Total length: | Self propel 1030 – 1080 mm / Transit |
| Total length without footrests: | Self propel 820 / 870 mm / Transit 725 mm |
| Total height: | Self propel 920 / 945 / 970 mm / Transit 945 / 970 mm |
| Max. safe slope: | 7° |
| Turning diameter: | 790 mm |
| Max. user weight: | 125 kg |
| Total weight: | Self propel 16.2 kg / Transit 14.kg |
| Transport weight: | Self propel 8.9 kg / Transit 12.1kg |
| Crash tested: | Yes |
| Frame colour: | Anthracite Black |
| Colour (other): | Upholstery: Black Nylon |
 |
Action 2NG Brochure (1.14 MB) |
|
User Manual Invacare Action2NG (ENG) (11.78 MB) |
