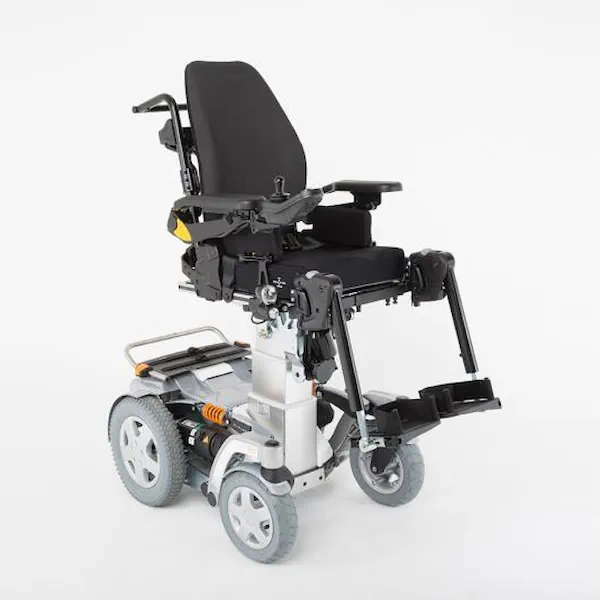

Looking for the perfect powerchair for all terrains? Storm4 X-plore by Invacare is just what you need. Storm4 X-plore is designed with a four-wheel suspension – increases shock absorption, offers comfort to users and as well ensure better traction on uneven ground, for an all-round enhanced outdoor performance. The Storm4 X-plore is the ideal partner for all terrains.
It is equipped with four separately adjustable high-end springs, with integrated shock absorbers; this actually guarantees outstanding comfort and traction on rough ground. More so, pneumatic tyres come as standard to further enhance outdoor performance.
The Invacare Storm4 X-plore is also easy on any terrain. The batteries and electronics are readily accessible. This makes servicing simple, while the width of the ModuliteTM seating systems can be adjusted from 380 mm to 530 mm to fit a wide range of user profiles.
Another great feature of Storm4 X-plore is LiNX Smart Technology, which redefines movement. This advanced technology provides a superb driving experience for users and allows professionals to configure and tailor powerchairs quickly and more intuitively. The smart control system enables programming and maintenance updates to be made wirelessly and in real-time, plus it has easy access to statistical and diagnostic information. This gives complete clarity to professionals.
Key features
| Seat width: | 380 – 530 mm |
| Seat depth: | 410 – 510 mm |
| Seat height: | 440 – 690 mm 450 / 480 mm without lifter |
| Backrest height: | 480, 540, 560 mm |
| Armrest height: | 275 – 340/ 325 – 390 mm 245 – 310/ 295 – 360 mm |
| Length of footrests: | 290 – 460 mm |

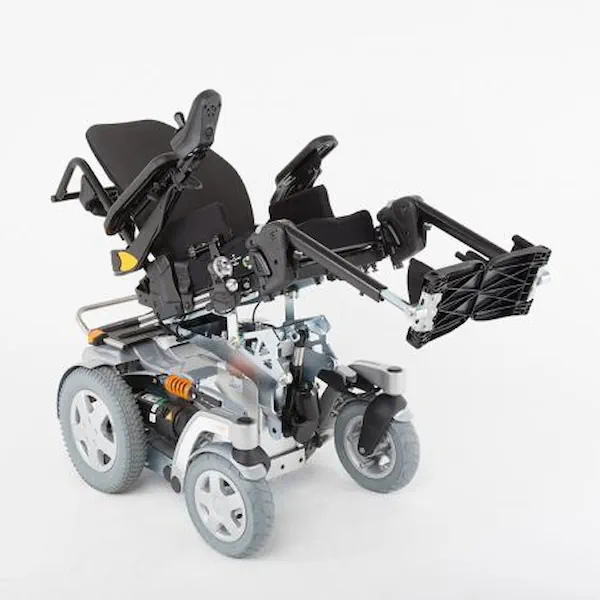

| Seat angle: | 0° – 25° |
| Backrest angle: | 90 – 120° |
| Total height: | 1020 – 1190 mm |
| Total length without footrests: | 910 mm |
| Driving unit width: | 630 mm (wheelbase) |
| Total length: | 1190 mm |
| Max. user weight: | 150 kg |
| Battery capacity: | 73.5 Ah |
| Turning diameter: | 1770 mm |
| Max. climbable obstacle height: | 60 / 100 mm |
| Max. safe slope: | Up to 20% (11.3°) |
| Motor capacity: | 340 W |
| Speed: | 10 or 12 km/h |
| Driving range: | Up to 37 km |
| Total weight: | 174 kg |
| Crash tested: | Yes |
| Shroud colour: | Standard colours: Blue (RAL 5026), Black (RAL 9005), Champagne (0314) – Colour Options: Transparent Red (0200), White (RAL 9016), Olive Green (RAL 6003) |
