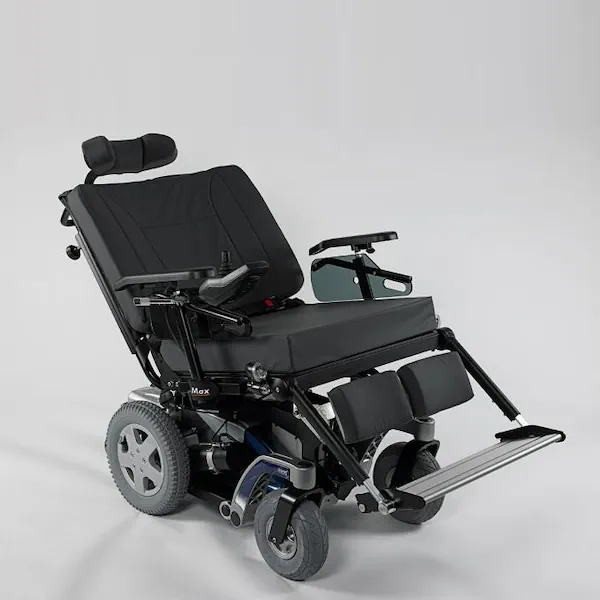

Invacare Storm4 MAX

From £POA

The Invacare Storm 4 Max is the best powerchair for users with larger body shapes. It is specially designed to meet the various needs of clients with larger body shapes. It comes with a more extended chassis that supports the shifted centre of body mass. This leads to refined weight distribution and swift mobility. The extra strong arm and leg rest support the client’s needs to push themselves back to re-position or do some pressure relief. It also features a G-Trac. This feature helps users to realize the ultimate driving performance and traction control. The stylish Storm4 Max completes the Storm4 family and conserves the trouble-free servicing.

The Invacare Storm4 Max quite easy to use and maintain. The Max batteries and electronics are easily accessible, thus making servicing simple. The depth of the seat can be adjusted in 3 steps which, which are indicated on the seat frame. An adapter to further reduce the seat depth is offered as an option.

Also integrated into this powerchair is the tilt and recline, which ensures individual comfort and positioning. The backrest recliner has a range of 0° – 25° with a high pivot point to reduce shearing forces. Storm4 Max uses the latest technology to allow for accurate control and expected driving experience for the user.

Key features

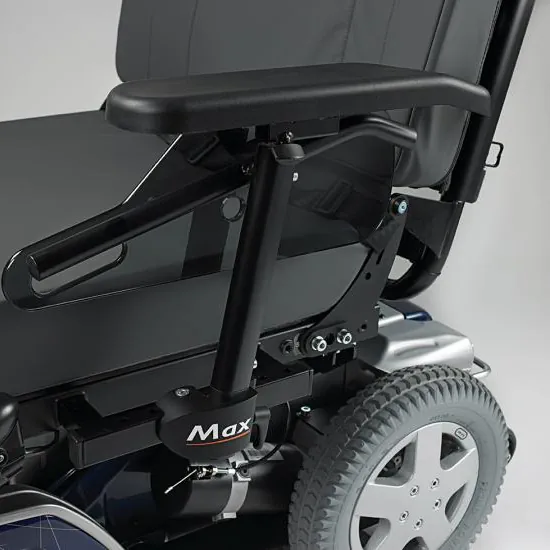

  • Armrest: It features a stylish and robust armrest, which can be mounted in several positions as well as adjusted in width.
  • Colours: Storm4 Max comes in various colours. Users can choose their best colours when looking to purchase.
  • Tilt and recline: It comes with powered tilt and reclines options, which ensures comfort and positioning for the user. The backrest recliner has a range of 0° – 25° with a high pivot point in order to reduce shearing forces.

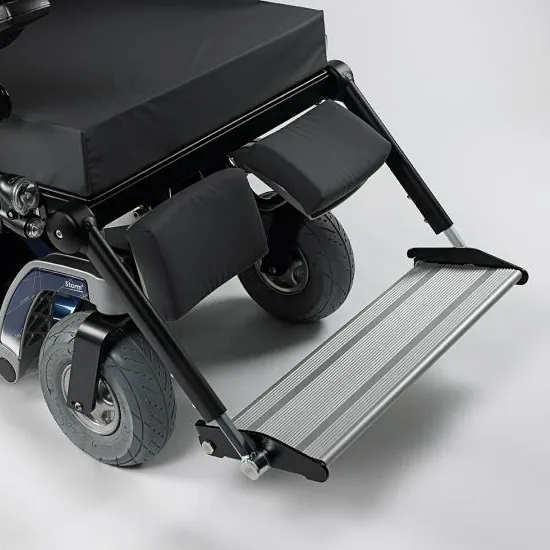

  • Footboard and Calf Pads: This feature supports various positions of the feet. It’s strong enough to allow the clients to push themselves back to reposition or do some pressure relief.
  • Ease of use: It’s user-friendly and makes servicing is a breeze. This is because the batteries and electronics are accessible.
  • LiNX controls: It is equipped with a LiNX control system, which brings revolutionary driving experience to users. It uses the latest technology to allow for accurate control and predictable driving experience for the user.

Specifications & Downloads

Seat width: 490 – 610 mm
Seat depth: 560, 595, 630 mm
Seat height: 480, 510 mm
Backrest height: 570 mm 630 mm
Length of footrests: 360 – 480 mm
Seat angle: 0°- 15° 0°- 9°
Backrest angle: 0 – 25°
Driving unit width: 630 mm
Total length: 1390 mm
Max. user weight: 220 kg
Turning diameter: 2080 mm
Max. climbable obstacle height: 60 mm
Max. safe slope: 6°(10,5 %)
Motor capacity: 350 W
Speed: 6 km/h
Driving range: Up to 31 km 8
Crash tested: Yes
Shroud colour: Standard colours: Blue (RAL 5026), Black (RAL 9005), Champagne (0314) – Colour Options: Transparent Red (0200), White (RAL 9016), Olive Green (RAL 6003)

Comment

  1. Additional 100 mm adjustment by each armrest
  2. Adapter to reduce seat depth by 130 mm available
  3. For small seat frame (490 mm) only
  4. Additional 50 mm of height adjustment
  5. Powered seat tilt
  6. Man. settable seat tilt
  7. Width of wheelbase; Overall dimension: min 670 – max. 855 mm to 975 mm including armrest width adjustment 8. According to ISO 7176-4:2008
Seat width: 490 – 610 mm
Seat depth: 560, 595, 630 mm
Seat height: 480, 510 mm
Backrest height: 570 mm 630 mm
Length of footrests: 360 – 480 mm
Seat angle: 0°- 15° 0°- 9°
Backrest angle: 0 – 25°
Driving unit width: 630 mm
Total length: 1390 mm
Max. user weight: 220 kg
Turning diameter: 2080 mm
Max. climbable obstacle height: 60 mm
Max. safe slope: 6°(10,5 %)
Motor capacity: 350 W
Speed: 6 km/h
Driving range: Up to 31 km 8
Crash tested: Yes
Shroud colour: Standard colours: Blue (RAL 5026), Black (RAL 9005), Champagne (0314) – Colour Options: Transparent Red (0200), White (RAL 9016), Olive Green (RAL 6003)

Comment

  1. Additional 100 mm adjustment by each armrest
  2. Adapter to reduce seat depth by 130 mm available
  3. For small seat frame (490 mm) only
  4. Additional 50 mm of height adjustment
  5. Powered seat tilt
  6. Man. settable seat tilt
  7. Width of wheelbase; Overall dimension: min 670 – max. 855 mm to 975 mm including armrest width adjustment 8. According to ISO 7176-4:2008
